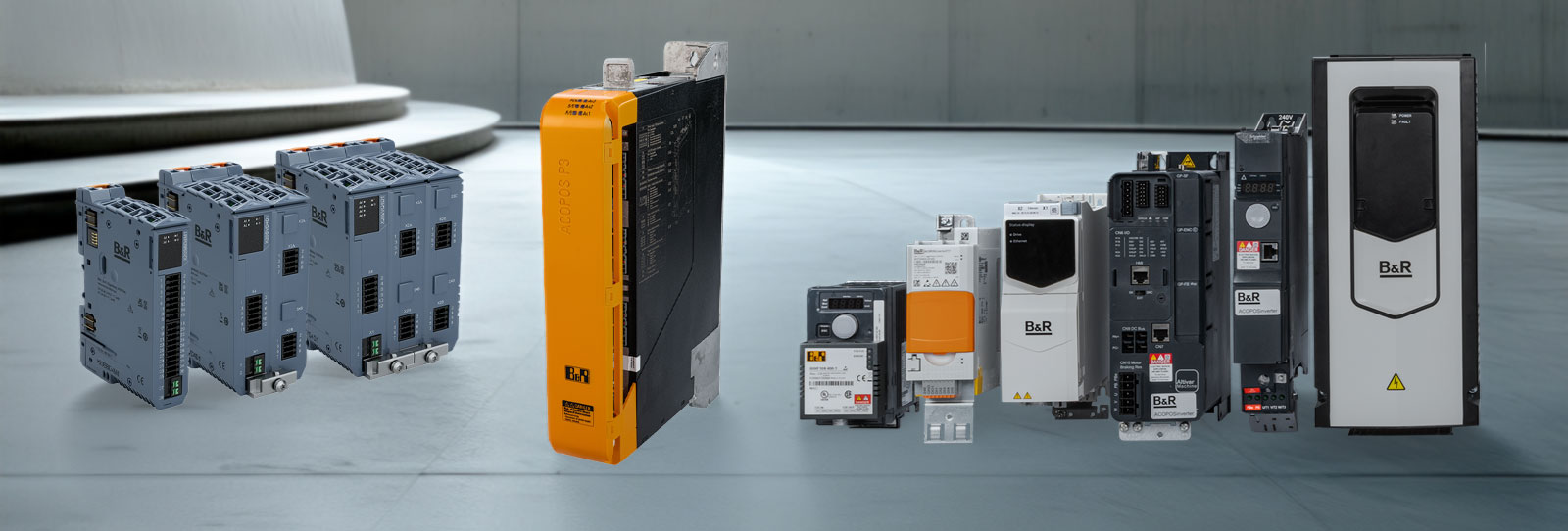

Motion control as part of a holistic automation solution
B&R motion control technology integrates seamlessly into your automation system, forming a complete solution for machines and systems together with control, visualization, safety technology and communication. All motion control components are fully compatible, and individual elements can be optimally adapted to your machine at any time.
Servo Drive Control – Precision in Motion
Servo drives are the heart of modern automation. They enable precise control of position, speed and torque in machines and systems.
Whether in robotics, machine tools or packaging systems – B&R servo drive controllers ensure reliable motion sequences and flexible adaptation to complex processes. With integrated communication via fieldbus systems, they are perfectly prepared for Industry 4.0 applications.
ACOPOS X
Setting new standards for compact motion control
The ACOPOS family expands with two new modules: ACOPOS X2 and ACOPOS X4. Machine builders gain additional options in a compact format. Both modules integrate directly into the slice-based X20 system, increasing versatility by supporting multiple motor and encoder types with a single module.
ACOPOS P3
The revolution in motion control technology
Eight times more processing power, up to 80 kW and 50% less space in the control cabinet. The B&R ACOPOS P3 delivers unmatched power density and precision.
ACOPOSmicro
Power in miniature format
Ultra-compact servo and stepper motor control for low-power applications. Dual-channel modules occupy less than 50 cm² per axis.
ACOPOSmulti
The universal, modular motion control system
Maximum cost efficiency and availability for machines with many axes. Flexible cooling concepts (wall, through-panel, cold plate) and powerful technology functions via POWERLINK.
ACOPOS
Smart servo amplifier
Delivers highest performance and fast response thanks to extremely short cycle times (down to 50 μs). Modular, robust and easy to commission – the centerpiece of your integrated automation solution.
ACOPOSremote
Decentralized and modular
Daisy-chain hybrid cabling and free motor selection ensure maximum flexibility and top performance in your system.
ACOPOSmotor
Motor-integrated servo drive
Compact unit combining servo amplifier, motor and sensor. Hybrid connector for power and POWERLINK. Enables decentralized, modular machine architectures and simplifies integration.
ACOPOSmotor Compact
Miniature servo drive
xtremely compact, fanless unit with integrated servo amplifier, motor and sensor. Uses daisy-chain hybrid cabling (POWERLINK) for easy installation.
Variable Frequency Drive – Flexible Motor Control for Maximum Efficiency
ACOPOSinverter variable frequency drives are the ideal solution for B&R-automated machines – delivering highest integration, performance and reliability.
The scalable portfolio ranges from entry-level models to high-end inverters, enabling a fully integrated, cost-efficient motion control solution. Future-ready and seamless: ACOPOSinverter sets new standards for intelligent automation.
ACOPOSinverter Px7
Whether for standard drive tasks or high-end applications, the Px7 series offers perfectly matched performance classes and scalable power from 250 W to over 100 kW. With seamless software integration, it ensures consistent engineering, fast commissioning and outstanding motion quality across the entire machine.
ACOPOSinverter Px6
The Px6 series delivers the right solution for every application: From patented Direct Control Technology and power ratings up to 250 kW for highly dynamic and precise motion, to encoder feedback and up to 75 kW for demanding closed-loop and hoisting applications. It also features a slim design for space-saving cabinet installation and serves as a versatile all-round inverter – including X2X POWERLINK and multiple supply voltage options, even for North American standards.
Motors and Gearboxes
Choose from a wide range of motors, gearboxes and pre-assembled combinations. Our portfolio covers both standard and specialized applications, meeting the requirements of various industries such as mechanical engineering and food production. With our standard motors – a selection of preconfigured models – we also ensure exceptionally fast delivery times.
Synchronous Motors
8LVA
Dynamic Compact Drives
Optimized for minimal installation space, these motors deliver maximum power density and dynamics (up to 1 kW). Low inertia and minimal cogging ensure maximum acceleration. Available up to IP65 and optionally with holding brake.
8LSN
High Inertia
Designed for applications with high mass inertia. Despite their compact size, these motors provide excellent positioning accuracy and outstanding dynamics.
8JSA
Precision in Motion
Engineered for high performance, the 8JS series impresses with its power density. It helps reduce part diversity and minimize space requirements without compromising performance.
8LS
Maximum Performance, Minimal Complexity
Benefit from fast axes thanks to superior dynamics and high overload capacity. Easy maintenance and low costs make these motors an efficient solution for your applications.
8KS
140 kW for the Most Demanding Applications
Motors for the upper power range (up to 140 kW) and high torque (up to 555 Nm). Ideal for servo-hydraulic solutions. Available with air or water cooling and encoders for functional safety.
Servo Motors
8WSA
Maximum Control, Minimal Size
These compact servo motors enable millimeter-precise positioning and synchronization in the tightest spaces.
8JS Edelstahl
Servo Power for Maximum Hygiene
Their hygienic design with smooth surfaces and IP69K protection ensures efficient cleaning and meets the strict standards of EHEDG and FDA.
Gear Motors
8WSB
Millimeter-Precise Accuracy
Optimized for minimal space, these motors are ideal for demanding applications such as dosing systems and robotic axes.
8LVB
Top Performance, Minimal Footprint
Perfect when high torque is required in the smallest possible installation space.
Planetary Gearboxes
8G Standard
Performance and Cost Efficiency Combined
Standard planetary gearboxes are the cost-effective alternative for fast applications (belt drives, rack-and-pinion systems). Hardened gearing guarantees high torque and precise positioning accuracy. Simply select the right geometry from our modular system.
8G Premium
Precision for Peak Performance
These premium planetary gearboxes offer minimal backlash and maximum rigidity. Ideal for handling systems with extreme dynamics. They run exceptionally quietly and withstand the highest axial and radial forces.
Torque Motors 8LT
Dynamics Without Detours
8LT torque motors deliver maximum dynamics and precise positioning with minimal weight. They offer maximum design flexibility and are completely maintenance-free.
Stepper Motors 80MP
Full Performance at the Best Price
B&R stepper motors are the cost-effective alternative with high torque and excellent overload capacity. Flexible integration, optionally available with IP65 protection and holding brake.
Additional Information and Tools
Find more details and helpful tools to support you in planning, selecting and implementing your solutions.
Encoder System Overview
From high-precision solutions to robust standard variants – all information at a glance.
Online Tools
Our CAD application gives you access to 2D/3D CAD data in various formats (currently available for ACOPOSmotor Compact only).
