Maximum performance comes in very small packages

The control cabinet variant of the Automation PC 2100 also provides a complete PC system with minimized dimensions.

This innovative PC design is based on Intel Bay Trail architecture, whose single-, dual- and quad-core processor technology represents a milestone for embedded systems – all while offering an optimal price/performance ratio. The quad-core processor achieves a higher performance level than the Core i3 3217UE-Prozessor processor used in the Panel PC 900.

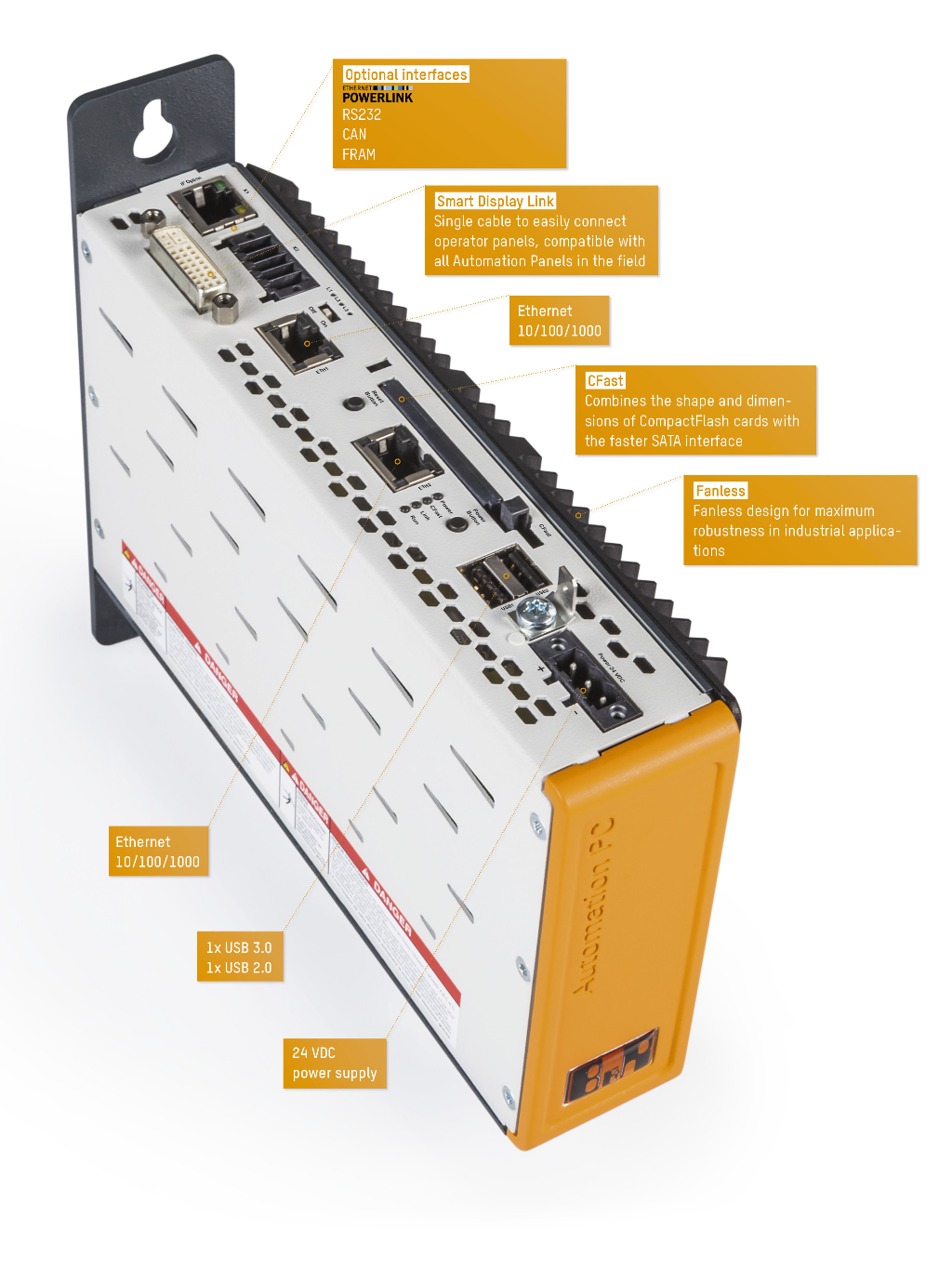

Communication in all directions

The Panel PC 2100 integrates all important interfaces, including 2x gigabit Ethernet as well as 1x USB 2.0 and 1x USB 3.0. Interface modules can also be added to take advantage of fieldbus technology such as POWERLINK and CAN. For data storage, MLC-based CFast cards are available that can store up to 60 GB or more.

Maximum graphics performance

The graphics engine used by Intel Atom processors is derived from Core i technology and provides powerful processing. This is also the first time that support for DirectX 11 is provided in this segment, opening up even more possibilities for enhanced graphic capabilities in SCADA and other HMI systems. All resolutions and screen sizes up to 24.0" Full HD are supported.

Highlights

  • Intel Atom E3800 processors
  • Up to quad-core CPU performance
  • Extremely powerful graphics
  • Compact dimensions
  • 2x gigabit Ethernet
  • SDL/DVI
  • Fanless
